Mecachrome LMP1 engine tech specs released


Mecachrome Motorsport has released the technical specification of its 2018 LMP1 engine, and hinted at the possibility of developing an an engine for use in IMSA WeatherTech SportsCar Championship competition.

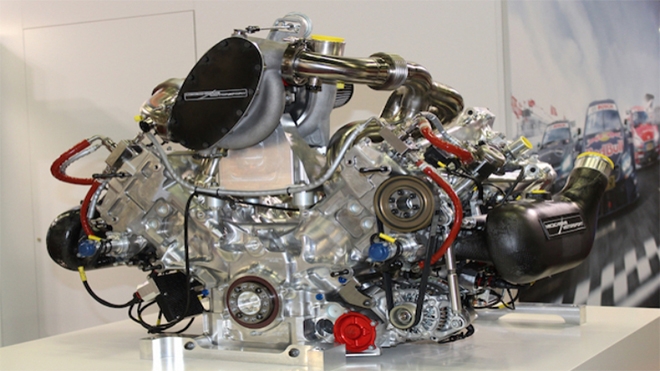

Its FIA WEC V634P1 LMP1 engine is a a 3.4-liter turbocharged V6, which will be available for the 2018/19 ‘Super Season.’ Thus far though, none of the five confirmed privateer teams have announced that they will be using it for their efforts.

The V6 in the LMP1 will include a single turbo similar to the F2 engine Mecachrome has developed. To optimize the maximum output, direct injection (250 bars) will be installed for the LMP1 engine. The turbo, combustion chamber, piston and engine valve will also be modified.

Most of the engine components are produced internally at the Mecachrome factory in Aubigny sur Nere, France, with the exception of the valve spring (NHK, Japan), steel valve (Zanzi, Italy), and the piston and conrod (Pankl, Austria).

“The project for this new V6 engine started about two and a half years ago,” Mecachrome motorsport director Bruno Engelric said. “We agreed to build new engines for the GP3 Series and FIA Formula 2 Championship, so when the LMP1 program was launched, it was obvious that this engine would be the perfect basis.

“Obviously, in the WEC LMP1 privateer class, we will have a lot of competition, so we really have to push the limits. We’ve had to adapt many aspects of the Mecachrome engine and aren’t limited by rules – our development is only restricted by whatever the team we’re supplying’s budget is.

“The single turbo will be in the centre of the “V,” and will be very different to the one used in F2. We investigated the possibility of running a twin-turbo, but because of the size of the engine we believe that just one large one will be best.

“We should have a good comparison after Le Mans, we already have a list of parameters to play with. It’s a very exciting prospect and we look forward to welcoming any new teams who may want to work with us.”

Alongside its LMP1 program, Mecachrome has also revealed it is looking at the necessary modifications to build an engine (based on the 3.4-liter V6) for the  WeatherTech SportsCar Championship.

“Following a discussion with the IMSA management team, Mecachrome Motorsport now understand the technical specifications which would need to be matched if they were to use the P1 engine as a basis for a DPI project, and also the budget restrictions in which this would need to be achieved,” a Mecachrome spokesperson said.

“Mecachrome also understand how this could be done keeping within the spirit of the championship, and are ready to start discussions with any manufacturer that may be interested in badging the engine for use in a program.”

Here are the V634P1 engine technical specifications:

  • 6 cylinders
  • Single turbocharger in “Hot Vee” configuration
  • 180-degree Twin Scroll turbine
  • 95-degree Vee angle
  • “Split pin design” crankshaft
  • Direct and port injection system
  • Lean burn combustion system
  • Displacement 3396cm³ (207.2in³)
  • Bore x Stroke: 96mm x 78.2mm (3.78in x 3.079in)
  • 4 valves per cylinder
  • Finger Follower actuated valves
  • Brushless electronic throttle barrel command
  • Bosch MS6.4 ECU
  • Dry sump
  • Full stressed engine construction
  • High strength aluminium, fully machined crankcase, sump, timing drive cover and cylinder head covers.
  • High strength steel wet liners
  • Mix gear / chain timing drive and ancillaries drives
  • Max rev. 9000rpm
  • Peak power (@110 kg/h WEC fuel): 650 BHP @ 7000rpm
  • Max torque (@110kg/h WEC fuel): 650 Nm @ 6000rpm
